首先先介绍下使用“Xilium.CefGlue”来在Winform中嵌入Chrome浏览器内核程序

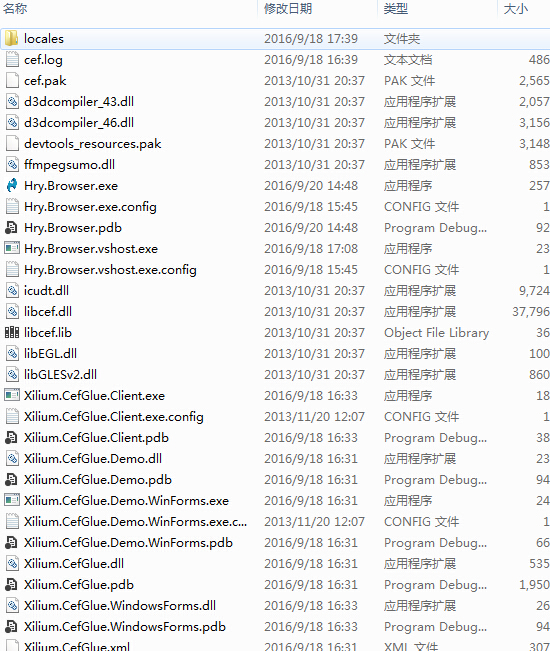

1、新建项目（把下图的这一大串的dll文件放入到你的Debug或者Release文件夹中，稍后我会把整个项目共享出来）

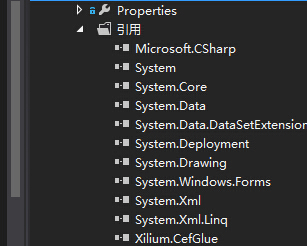

2、添加项目引用

3、在应用程序入口点写入如下代码

  CefRuntime.Load();
            var mainArgs = new CefMainArgs(new string[] { });
            var exitCode = CefRuntime.ExecuteProcess(mainArgs, null);
            if (exitCode != -1)
                return;
            var settings = new CefSettings
            {
                SingleProcess = false,
                MultiThreadedMessageLoop = true,
                LogSeverity = CefLogSeverity.Disable,
                Locale = "zh-CN"
            };
            CefRuntime.Initialize(mainArgs, settings, null);
            Application.EnableVisualStyles();
            Application.SetCompatibleTextRenderingDefault(false);
            if (!settings.MultiThreadedMessageLoop)
            {
                Application.Idle += (sender, e) => { CefRuntime.DoMessageLoopWork(); };
            }
            Application.Run(new Main());  CefRuntime.Shutdown();

4、因为对代码进行了封装，在这里不做过多解释了，调用代码如下

  BsControl Browser;
        private void Main_Load(object sender, EventArgs e)
        {
            Browser = new BsControl(this);
        }

        /// <summary>
        /// 前台主页跳转
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void Pb_Home_Click(object sender, EventArgs e)
        {
            Browser.LoadUrl("http://blog.lcyuandaima.com/");
        }

5、BsControl的封装如下

 public partial class BsControl
    {
        CefBrowser bs;
        Control parent;
        Form _form;
        public BsControl(Form form)
        {
            _form = form;
            parent = ((Control)form.Controls.Find("BrowserContainer", true)[0]);
            TextBox AddressControl = ((TextBox)form.Controls.Find("Txt_Address", true)[0]);
            var cwi = CefWindowInfo.Create();
            cwi.SetAsChild(parent.Handle, new CefRectangle(0, 0, parent.Width, parent.Height));
            var bc = new BsClient();
            bc.OnCreated += bc_OnCreated;
            bc.OnTitleChanged += (s, e) =>
            {
                form.BeginInvoke(new Action(() =>
                {
                    form.Text = ((TitleChangedEventArgs)e).Title+"IT小马";
                }));
            };
            bc.OnAddressChanged += (s, e) =>
            {
                form.BeginInvoke(new Action(() =>
                {
                    AddressControl.Text = ((AddressChangedEventArgs)e).Address;
                }));
            };
            bc.OnStatusMessaged += (s, e) =>
            {
                form.BeginInvoke(new Action(() =>
                {

                }));
            };
            bc.OnLoadingStateChanged += (s, e) =>
            {
                form.BeginInvoke(new Action(() =>
                {
                    LoadingStateChangedEventArgs loadingstate = ((LoadingStateChangedEventArgs)e);
                    if (loadingstate.IsLoading)
                    {
                        ((PictureBox)form.Controls.Find("Pb_Refresh", true)[0]).Image = Properties.Resources.appbar_close;
                    }
                    else
                    {
                        ((PictureBox)form.Controls.Find("Pb_Refresh", true)[0]).Image = Properties.Resources.appbar_refresh;
                    }
                    if (CanGoForWard())
                    {
                        ((PictureBox)form.Controls.Find("Pb_Right", true)[0]).Enabled = true;
                        ((PictureBox)form.Controls.Find("Pb_Right", true)[0]).BackColor = Color.Transparent;
                    }
                    else
                    {
                        ((PictureBox)form.Controls.Find("Pb_Right", true)[0]).Enabled = false;
                        ((PictureBox)form.Controls.Find("Pb_Right", true)[0]).BackColor = Color.LightGray;
                    }
                    if (CanGoBack())
                    {
                        ((PictureBox)form.Controls.Find("Pb_Left", true)[0]).Enabled = true;
                        ((PictureBox)form.Controls.Find("Pb_Left", true)[0]).BackColor = Color.Transparent;
                    }
                    else
                    {
                        ((PictureBox)form.Controls.Find("Pb_Left", true)[0]).Enabled = false;
                        ((PictureBox)form.Controls.Find("Pb_Left", true)[0]).BackColor = Color.LightGray;
                    }
                }));
            };
            var bs = new CefBrowserSettings() { };
            CefBrowserHost.CreateBrowser(cwi, bc, bs, "http://blog.lcyuandaima.com/");
            parent.SizeChanged += parent_SizeChanged;
            AddressControl.Text = "http://blog.lcyuandaima.com/";
        }


        void bc_OnCreated(object sender, EventArgs e)
        {
            bs = (CefBrowser)sender;
            var handle = bs.GetHost().GetWindowHandle();
            ResizeWindow(handle, parent.Width, parent.Height);
        }
        void parent_SizeChanged(object sender, EventArgs e)
        {
            if (bs != null)
            {
                var handle = bs.GetHost().GetWindowHandle();
                ResizeWindow(handle, parent.Width, parent.Height);
            }
        }
        private void ResizeWindow(IntPtr handle, int width, int height)
        {
            if (handle != IntPtr.Zero)
            {
                NativeMethod.SetWindowPos(handle, IntPtr.Zero,
                    0, 0, width, height,
                    0x0002 | 0x0004
                    );
            }
        }
        public void LoadUrl(string url)
        {
            bs.GetMainFrame().LoadUrl(url);
        }
        public void ReloadOrStop()
        {
            if (bs.GetMainFrame().Browser.IsLoading)
            {
                bs.GetMainFrame().Browser.StopLoad();
            }
            else
            {
                bs.GetMainFrame().Browser.Reload();
            }
        }

        public bool IsLoading()
        {
            return bs.GetMainFrame().Browser.IsLoading;
        }
        public void GoForward()
        {
            if (bs.GetMainFrame().Browser.CanGoForward)
            {
                bs.GetMainFrame().Browser.GoForward();
            }
        }
        public void GoBack()
        {
            if (bs.GetMainFrame().Browser.CanGoBack)
            {
                bs.GetMainFrame().Browser.GoBack();
            }
        }
        public bool CanGoForWard()
        {
            return bs.GetMainFrame().Browser.CanGoForward;
        }
        public bool CanGoBack()
        {
            return bs.GetMainFrame().Browser.CanGoBack;
        }
    }

点我下载
